CNC Machines

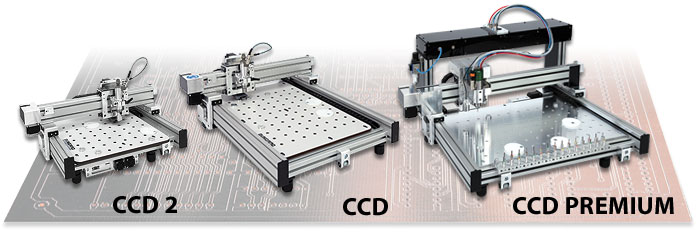

Bungard CCD Familie

The Bungard CCD is a high-end computer operated CNC Machine. Available in different table sizes and with automatic or manual tool change. Together with the machine control software RoutePro 2008, the IsoCAM 3.0 software for converting  design data into CNC Data and the various drills and cutters the CCD is a professional tool for a wide range of tasks in electronic laboratories, model building and PCB production. The CCD allows the direct use of Excelleon or Sieb/Meyer drill data,  HP-GL data for manufacturing PCBs (Drilling, Routing, Isolation milling) or routing/engraving of plastic, aluminum and other metals. With optional ISOCAM PRO software, even import of Gerber and DXF and Bitmap data is possible!

CCD-ATC

CCD-MTC

CCD-2

Available Options

New! Bungard Laser Direct – UV laser direct imaging with the Bungard CCD

Technical data:

    • Power supply: 110-240 V, 50-60 Hz + vacuum cleaner (1500W)
    • Weight: approx. 32 kg

Compressed air required for auto tool change Computer not included

Download CCD video in high quality (ZIP, 240 mb)[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container]
